SUPER VERTICAL 80/160 DX AGU
Vertical DX antenna for low bands 80/160 NEW version with 40 meter kit

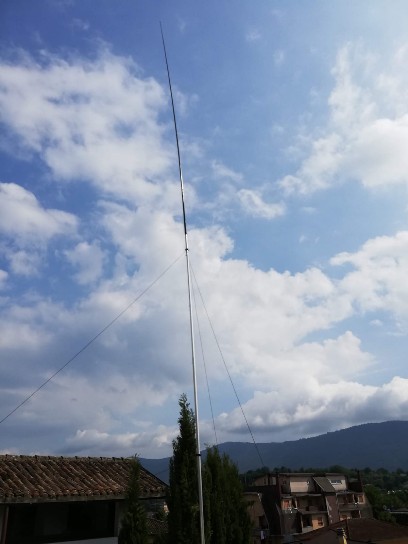

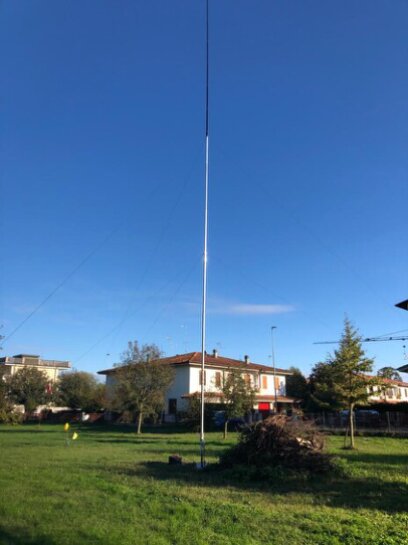

Height about 22 meters 80/160 version
Height about 20 meters 40/80/160 version.
10m aluminum tube, 12m / 10m fiberglass pole

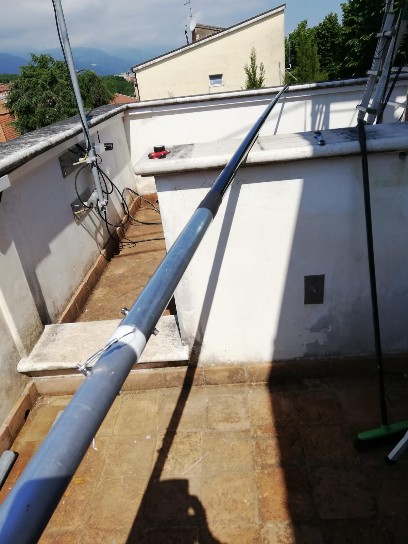

The new version uses a high quality fiberglass tube of 12 / 10 meters.
This allows to lighten the structure and allows an easier and safer installation
and greater wind resistance
Power 5kw
Diameter of elements from 75 to 12 mm.
Stainless steel bolts
5mm diameter aluminum wire coil for a perfect mechanical seal.
3-position switch, off cw /1 digi /2 ssb for 80 and 160 meters
Vacuum relay 24V, normal relay 12V.

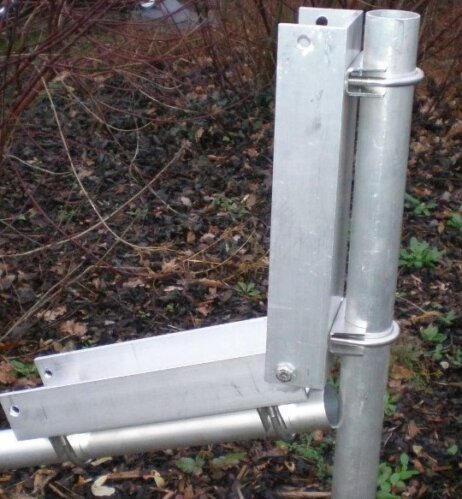

Weight approx. 20 kg - Folding base
The Super vertical antennas differ from similar ones on the market in several features.
All hardware is stainless steel.
The telescopic tubes are fastened with stainless steel flanges
The capacitors used in the LC circuits are large in size with considerable power handling up to 5kw

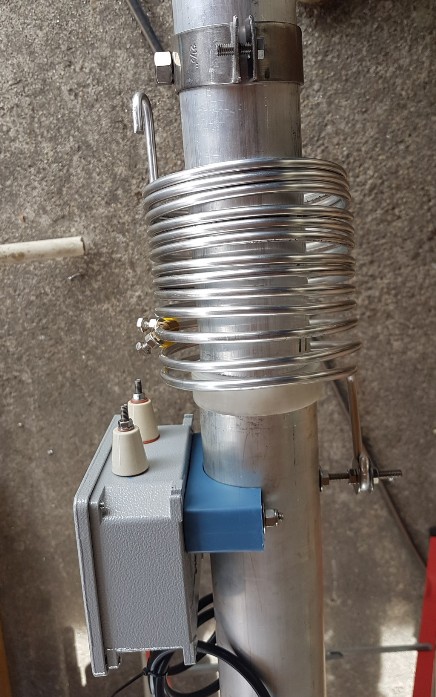

The coil are made with aluminum wire diameter 5mm.
This feature allows to have a perfect mechanical seal of the LC circuit, an easy antenna calibration, a remarkable
mechanical resistance to external stress.

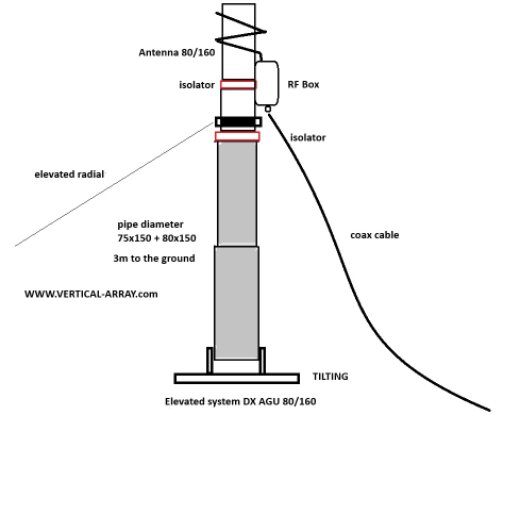

In photos the new Vertical-Array antenna feeding system.
The long transmission cycles in the digital modes have convinced us to modify the feed point of our antennas.
In this way there will be a great dissipation of heat, even with high powers for long periods.
New Kit 40 m.
PRICE EURO
80/160dx € 900,00
80/160dx + switch cw/digit/ssb € 1020,00
80/160dx + switch vacuum relay cw/digit/ssb € 1200,00
40/80/160dx € 1050,00
40/80/160dx + switch cw/digit/ssb € 1170,00
40/80/160dx + switch vacuum relay cw/digit/ssb € 1350,00
